RF 1200 Switch

RF1200 RF switch module with two path RF signal input ,one path RF signal output are widely used in the 1550 nm, 1310 nm ring-network ...

Current position:HOME > HFC

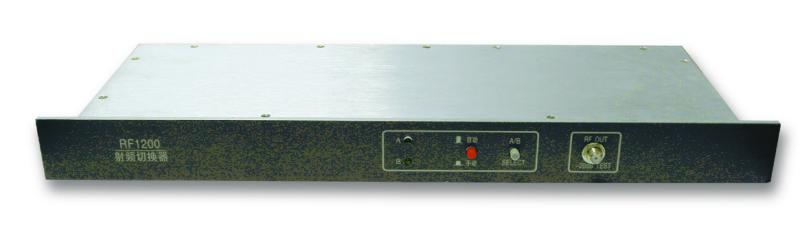

RF 1200 Switch

Overview        RF1200 RF switch module with two path RF signal input ,one path RF signal output are widely used in the 1550 nm, 1310 nm ring-network system.Users can set the switching threshold.with two path RF input signal detection and judgment, if radio frequency signal level is lower than or exceeds the threshold, the switch will set to switch on its own.
       In the case of two way RF signals are normal,products support switching manually RF channel , and switching on the front panel or remote network management forcefully. At the same time ,remote network management provides a real-time monitoring. Features         Indoor 1U structure, Bandwidth:5 ~ 1000 MHZ
        A and B channels can be switched automatically and manually, which improves the reliability of the network
        Users can set switch threshold
        Excellent in-band flatness and reflection loss
        Adopting aluminum case, drawing surface oxidation, high shielding factor
        Open network management meets the national NM standard, the SCTE HMS NM standards and IEC NM standards Technical Specifications

No

Item

Unit

Parameters

1

Frequency range

MHz

5~862/1000MHz

2

Input reflect loss

dB

16

3

Output reflect loss

dB

16

4

Isolation degree

dB

70

5

Isolation degree of in and out ports

dB

70

6

Insertion loss

dB

2.0

7

Flatness

dB

±0.75

8

RF switching time

ms

20

9

RF input impedance

Ω

75

10

Input level range

dBuV

9610659 paths PALanalog RF signal

11

Power supply

V

AC 220V 50Hz

12

Operating temperature

-25~+65

13

Storage temperature

-30~+70
