Interface

- 3*1000Mbps LAN Ports

- 1*1000Mbps WAN Port

Power Supply

- 12V DC/1A

Antenna

- 2 * 2.4GHz fixed antennas(6dBi)

- 2 * 5GHz fixed antennas(6dBi)

Button

- 1*RST    - 1*WPS/Mesh

LED Indicators

- 1 *SYS(Red&Green)

Dimensions (L x W x H)

- 204 x 127 x 35mm

Wireless

Standards

- IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n,

- IEEE 802.11g, IEEE 802.11b, IEEE 802.11a

RF Frequency

-  2.4~2.4835GHz

-  5.18~5.825GHz

Data Rate

-  2.4GHz: Up to 573.5Mbps (2*2 40MHz)

-  5GHz: Up to 1201Mbps (2*2 80MHz)

EIRP

-  2.4GHz < 22dBm

-  5GHz < 20dBm

Wireless Security

- WPA2/WPA Mixed

- WPA3

Reception Sensitivity

- 2.4G: 11b: <-85dbm;

            11g: <-72dbm;

            11n: HT20<-68dbm HT40: <-65dbm

- 5G: 11a:<-72dbm;

           11n: HT20<-68dbm HT40: <-65dbm

           11ac: <-55dbm

           11ax VHT80: <-46dbm

           11ax VHT160: <-43dbm

Basic

- Internet Settings

- Wireless Settings

- Parental Control

- Guest Network Settings

- Smart QoS

Network

- Internet Setup

- LAN Setup

- DDNS

- IPTV

- IPv6

Wireless

- Wireless Setup

- Guest Network

- Schedule

- Access Control

- Advanced

- Parental Control

- Smart QoS

Device Management

- Routing Table

- Static Route

- IP/MAC Binding

Security

- IP/Port Filtering

- MAC Filtering

- URL Filtering

NAT

- Virtual Server

- DMZ

- VPN Passthrough

Remote network

- L2TP Server

- Shadow socks

- Account Manage

Service

- Remote

- UPnP

- Schedule

Tools

- Change Password

- Time Setup

- System

- Upgrade

- Diagnosis

- Route Tracking

- Log

Operation Mode

- Gateway mode

- Bridge mode

- Repeater mode

- WISP mode

Other Function

- Multi-language automatic adaptation

- Domain Access

- QR Code

- - LED Control

- Reboot

- Logout

Others

Package Contents

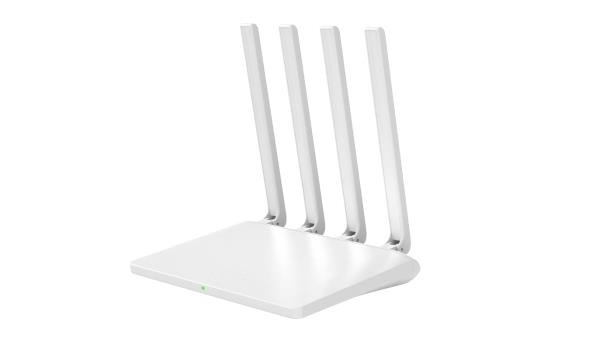

- W3 Wireless Router *1

- Power Adapter *1

- RJ45 Ethernet Cable *1

- Quick Installation Guide *1

Environment

- Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)

- Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)

- Operating Humidity: 10%~90% non-condensing

- Storage Humidity: 5%~90% non-condensing
